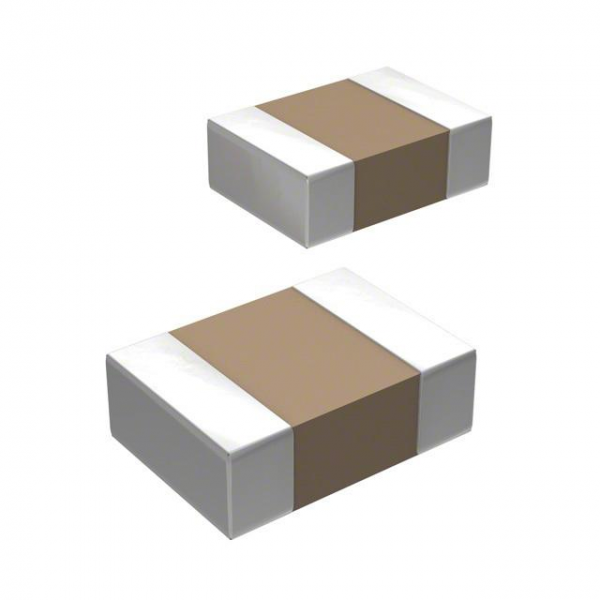

| Part Number | CF453215-R12K |
|---|---|
| Part Status | Obsolete |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 120nH |
| Tolerance | ±10% |
| Current Rating | 770mA |
| Current - Saturation | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 200 mOhm Max |
| Q @ Freq | 35 @ 25.2MHz |
| Frequency - Self Resonant | 280MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Frequency - Test | 25.2MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
