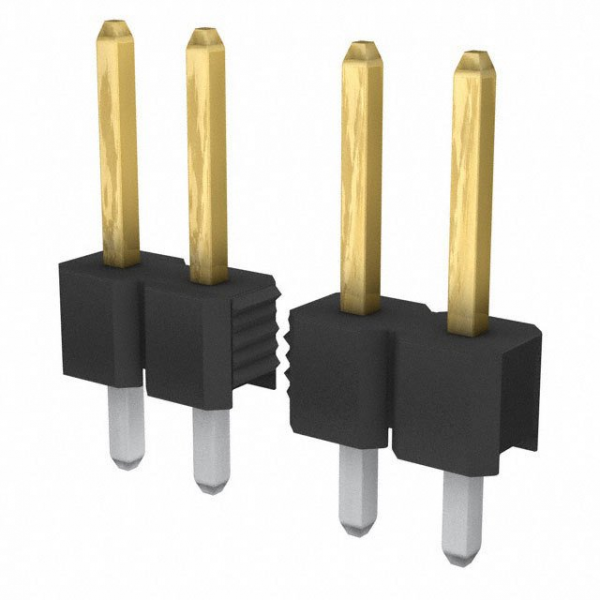

| Part Number | 861400051YO2 |
|---|---|
| Part Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Number of Positions | 5 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.276" (7.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.496" (12.60mm) |
| Insulation Height | 0.102" (2.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 8µin (0.20µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
Manufacturer: Amphenol FCI
Description: HEADER BERGSTIK R/A
In Stock: 0
