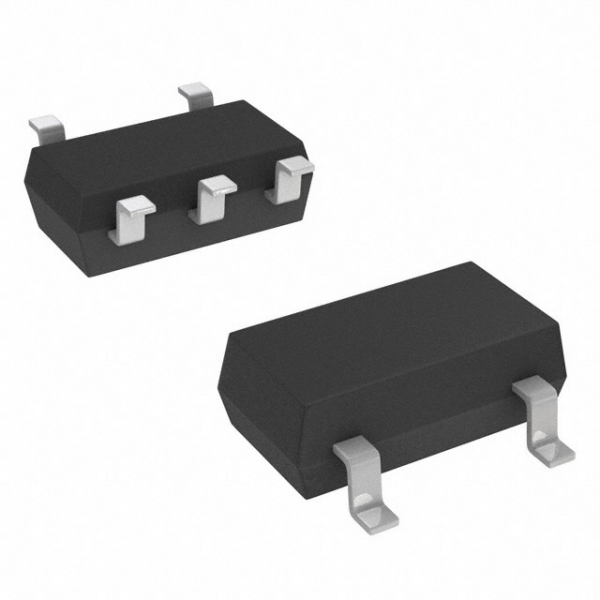

Sharp Microelectronics PQ1U321M2ZPH

Part Number: PQ1U321M2ZPH
Manufacturer: Sharp Microelectronics
Description: IC REG LDO 3.2V 0.15A SOT23-5
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: PMIC - Voltage Regulators - Linear

Sharp Microelectronics

sharp microelectronics of the americas (sma) drives innovative lcd, optoelectronics, memory, imager, and rf components to market. the world's leading manufacturers of consumer and business technologies look to sma for the products, expertise, and worldwide support they need to make their visions a reality.

Product Parameter

Part Number	PQ1U321M2ZPH
Part Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	3.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 150mA
Current - Output	150mA
Current - Supply	200µA
PSRR	70dB (400Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-30°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
